How Do You Know if Your Blend Door Actuator Is Bad
Reading Time: 4 minutes
Your car's climate control organisation is more complex than you lot might think. In improver to the major heating and air conditioning (A/C) components, there's an entire air management organization tucked abroad backside the dashboard. Within that air management system, you lot'll find one or more than actuators that operate the blend door(southward).
What Does a Alloy Door Actuator Practice?
To better understand the function of a blend door actuator, it helps to have some knowledge of the climate control air management system. As you might guess, the air management system controls airflow into the passenger compartment. The organisation consists primarily of plastic cases—that business firm the A/C evaporator cadre, heater core, and blower motor—along with a collection of ducts and doors.
A typical air management system has three chief types of doors: an inlet door, a mode door, and one or more than blend doors. The inlet door determines whether fresh air or recirculated air travels through the organization. Meanwhile, the mode door controls the air discharge location (i.east., panel or floor).
Finally, the alloy door, which is sometimes referred to as a temperature or mixture door, manages the air temperature past regulating airflow through the Heater core.
Nearly vehicles use an electric motor actuator to control the position of the blend door (though, some employ a mechanical cable instead). Depending on the system pattern, there may be just one alloy door actuator or multiple alloy doors and actuators.
When the driver operates the temperature knob or lever on the dash, power is sent to the actuator, causing the device to motion the alloy door in 1 direction or some other. Many blend door actuators have a built-in feedback sensor that keeps the climate control module apprised of the door'southward position.
What are The Symptoms of a Bad Blend Door Actuator?
Do you think yous might be dealing with a bad blend door actuator? If your vehicle is exhibiting 1 or more than of the following symptoms, you might be right.
Notation: Because other problems tin can nowadays the same symptoms every bit a faulty blend door actuator, yous'll desire to perform a thorough diagnosis of the vehicle before replacing any parts.
Wrong Climate Control Outlet Temperature
Most climate control systems are designed then that all air flows through the evaporator cadre to remove wet. Temperature control is obtained by routing air towards or away from the heater cadre using the blend door.
A faulty actuator can crusade the blend door to be stuck in one position or some other, resulting in an outlet temperature that's hotter or colder than the desired setting.
Abnormal Noises
A bad blend door actuator may make a clicking sound when activated. Yous'll hear the racket coming from behind the dashboard.
Dissimilar Outlet Temperatures

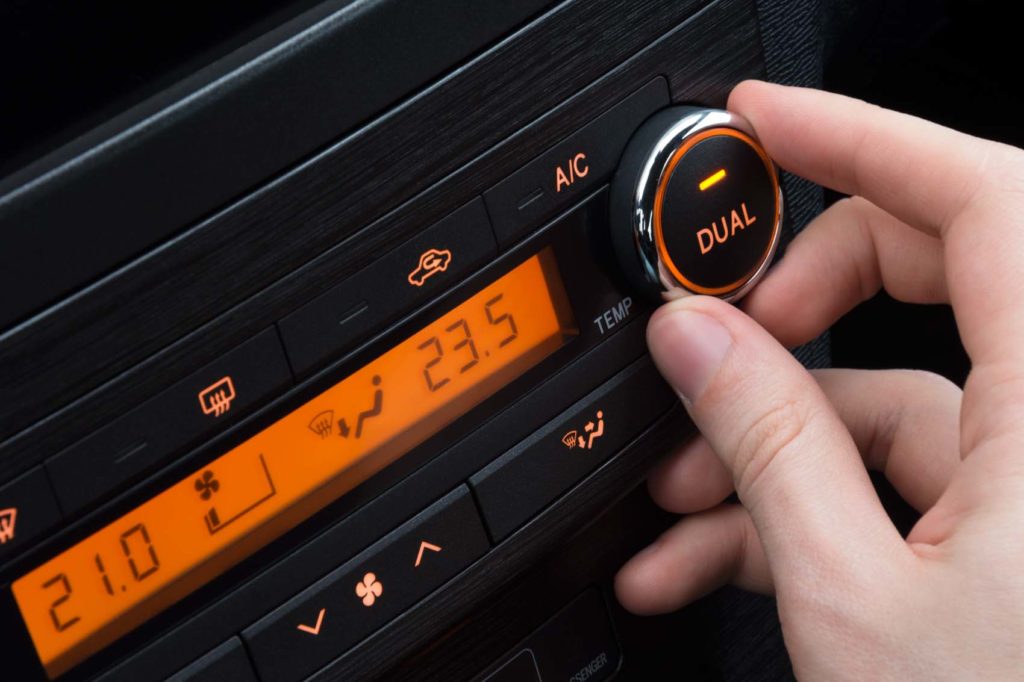

In systems that accept multiple blend doors and actuators, you might find that i vent outlet temperature is different from the other. For instance, if the system has dual-zone climate control, a failed right forepart alloy door actuator could foreclose the climate control from changing on the passenger side.
How Do You Exam a Blend Door Actuator?
Because many other problems tin can mimic a bad blend door actuator, you (or your mechanic) volition need to do some troubleshooting to decide whether the actuator is faulty.
Usually, testing a blend door actuator involves straight applying power to the actuator to see if information technology moves the door. Whether the feedback sensor (if equipped) changes its output signal may too be taken into consideration.
Professionals often use OEM-level browse tools to test blend door actuators. A faulty blend door actuator will often prepare a diagnostic problem lawmaking (DTC) that can be retrieved using a high-end scanner (code readers and generic browse tools will not piece of work). What's more, the scan tool can be used to actuate the alloy door actuator to check for proper functioning.
Because the procedure for testing a blend door actuator volition vary past vehicle, yous'll want to consult a repair manual or repair database before attempting whatsoever troubleshooting. Yous can find more than information on accessing quality repair information in our article on repair manuals.
How Much Does it Cost to Fix a Blend Door Actuator?
If y'all choose to take a professional person supersede your car'south blend door actuator, yous tin usually expect to pay somewhere betwixt $200 and $500 to become the job done. Of form, the exact cost will depend on various factors, such as the yr, make, and model of your vehicle.
You tin can relieve money by replacing the blend door actuator yourself if you have the tools and the know-how. CarParts.com has a wide variety of replacement blend door actuators bachelor for various makes and models.
Alloy Door Actuator FAQ
Where is my alloy door actuator?
The alloy door actuator(due south) are typically located on the climate command case behind the dashboard. Consult a repair manual or repair database for the exact location of your vehicle's blend door actuator(s).
What causes a blend door actuator to go bad?
A blend door actuator tin can fail electrically (for case, a faulty motor) or mechanically (for case, broken gears). The video below demonstrates why alloy door actuators fail on certain Ford models:
Tin you drive with a bad blend door actuator?
Although a faulty blend door actuator tin preclude your climate command system from working properly, the problem volition not stop your vehicle from running well. If you can stand up the discomfort of the climate control not working correctly, there'south no reason why you can't continue driving with a faulty blend door actuator.
How exercise I reset my alloy door actuator?
On some vehicles, the blend door actuator must be calibrated upon installation. The verbal calibration procedure will vary, so you lot'll desire to consult a repair manual or repair database to verify the steps for your awarding.
How long does it take to fix a blend door actuator?
Exactly how long it takes to supervene upon a blend door actuator will depend on several factors, including the actuator's location. Some alloy door actuators are easy to admission, while others are buried backside many other components underneath the dashboard.
Any information provided on this Website is for informational purposes simply and is non intended to supercede consultation with a professional person mechanic.
